OEM Grade 360 Degree Bus Monitoring System with SONY Sensors and Night Vision for Passenger Safety

30pts
MOQ
Negoziabile
prezzo
OEM Grade 360 Degree Bus Monitoring System with SONY Sensors and Night Vision for Passenger Safety
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Sensore: CG 2053
Lente: Lente di vetro 6
Tipo: Telecamera retromarcia, telecamera di backup
Rilevamento del movimento: Supporto
Alimentazione elettrica: 12 V di corrente continua
Tasso impermeabile: IP68 (completamente impermeabile e antipolvere)
Materiale: Metallo
Evidenziare:

360 degree bus monitoring system

,

bus blind spot monitoring system with night vision

,

OEM bus monitoring system with SONY sensors
Informazioni di base
Luogo di origine: Shenzen, Cina
Marca: KINGCROWN
Certificazione: RoHS
Numero di modello: BG-SPJ-1080S
Termini di pagamento e spedizione
Imballaggi particolari: Esporta pacchetto standard
Tempi di consegna: 45 giorni
Termini di pagamento: T/T, L/C
Capacità di alimentazione: 1000set/mese
Descrizione di prodotto
OEM Grade 360 Degree Bus Monitoring System with SONY Sensors and Night Vision for Passenger Safety

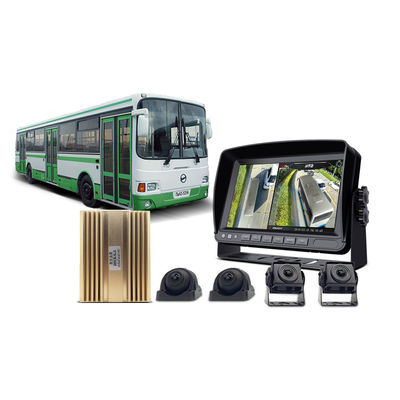

The OEM 360 Degree Camera System for Buses is a professional-grade surround view solution developed specifically for public transportation, school buses, and commercial fleet vehicles. By combining AHD 1080P high-definition cameras with original SONY image sensors, this system delivers reliable, sharp, and stable imaging under both daytime and nighttime conditions.
Through real-time image stitching, the system provides a complete 360° bird's-eye view around the bus, significantly reducing blind spots and improving driver awareness during turning, docking, reversing, and low-speed maneuvering. Designed with OEM integration in mind, it supports large-scale fleet deployment and long-term commercial operation.
Product Characteristics
  • 360° panoramic surround view for buses
  • AHD 1080P high-definition imaging
  • SONY CMOS sensors for stable image quality
  • Night vision for all-weather operation
  • IP68 waterproof cameras for outdoor installation
  • Designed for commercial fleet durability
  • Ideal for OEM bus safety and fleet monitoring system
Product Specification
Type Vehicle Camera System
View Angle 360 Degree
Function Waterproof, NIGHT VIEW
Voltage DC 12V
Lens 6 Glass Lens
Sensor GC 2053
Night vision Night Vision Support
Video Standard PAL NTSC Optional
Material Metal
Working Temperature (°C) 20-+60
Applications
  • City and municipal buses
  • School bus safety systems
  • Tourist and intercity coaches
  • Shuttle and airport buses
  • Commercial passenger fleets
  • OEM bus manufacturing and retrofit projects
Customer Service
We provide end-to-end OEM support, including technical consultation, installation guidance, system calibration assistance, and after-sales service. All systems are supplied with a 12-month warranty, and our engineering team offers fast-response support for fleet projects and long-term cooperation.
FAQs
Q1: Is this system suitable for OEM and fleet-level projects?
A: Yes, it is designed specifically for OEM integration and large fleet deployment.
Q2: Can it operate on both 12V and 24V bus systems?
A: Yes, it supports standard commercial vehicle voltage ranges.
Q3: How reliable is the night vision performance?
A: The SONY sensors provide excellent low-light sensitivity for night operation.
Q4: Can the system connect to existing bus DVR or MDVR units?
A: Yes, it is compatible with common fleet recording and monitoring systems.
Q5: Is customization available for camera layout and system configuration?
A: OEM and ODM customization services are fully supported.
