Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

prodotto: Telecamera per punto cieco laterale AHD 720P per camion con grandangolo di 170° e visione notturna S

Garanzia: 1 anno

OEM, ODM: Supporto

risoluzione: 1024×720 P

Angolo dell'obiettivo: Fisheye grandangolare 170°

Segnale video: AHD / CVBS (commutabile)

Voltaggio: CC 12 V

Valutazione di impermeabilità: IP67 / IP68

Applicazione: Camion, autobus, furgoni, camper, veicoli della flotta commerciale

Evidenziare:

HD AHD starlight rear view camera

night vision truck backup camera

side view camera for bus van

Informazioni di base

Luogo di origine: Guangdong, Cina

Marca: KING CROWN

Certificazione: RoHs

Termini di pagamento e spedizione

Imballaggi particolari: Scatola di cartone

Tempi di consegna: 45 giorni

Termini di pagamento: T/T, L/C

Capacità di alimentazione: 1000 set al mese

Galleria

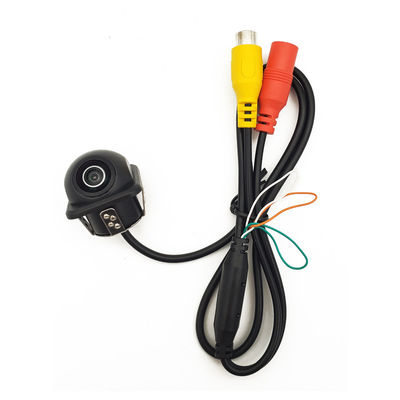

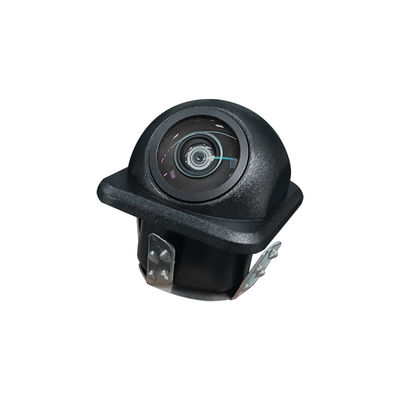

HD AHD Starlight Night Vision Side / Rear View Camera for Truck, Bus & Van

Descrizione di prodotto

HD AHD Starlight Night Vision Side / Rear View Camera for Truck, Bus & Van

Designed for commercial vehicles and demanding driving environments, this AHD starlight night vision camera delivers a wide, clear, and reliable view for reversing, side monitoring, and blind-spot elimination. With a compact body, professional waterproof protection, and true color night imaging, it is an ideal solution for trucks, buses, vans, RVs, and fleet vehicles.

Ultra-Wide 170° Fisheye Viewing Angle

Equipped with a 170° ultra-wide fisheye lens, the camera significantly expands the field of view compared with standard 120°-130° cameras. It allows drivers to clearly monitor blind spots, adjacent lanes, and tight parking areas, improving overall driving and reversing safety.

True Starlight Color Night Vision

Using a starlight-level image sensor and AHD high-definition processing chip, the camera delivers full-color night images without infrared or white LED fill light. Even in low-light urban roads, parking garages, or night driving conditions, details remain clear, natural, and sharp—far superior to traditional black-and-white night vision cameras.

AHD / CVBS Dual Signal Output (Switchable)

The camera supports AHD and CVBS video output, making it compatible with a wide range of vehicle monitors and DVR systems.

Default output: AHD (higher clarity)
Cut the orange wire to switch to CVBS, offering flexible installation and system integration.

Adjustable Display Modes with Control Wires

Built-in control wires allow users to easily customize display behavior:

White wire: switch between normal image and mirror image
Green wire: enable or disable parking guide lines

This flexibility makes the camera suitable for front, rear, left, or right side installation.

IP67 / IP68 Waterproof, Fog-Proof & Shock-Resistant

The camera features a fully sealed structure with professional waterproof testing, ensuring stable operation in rain, snow, fog, dust, and extreme road conditions. It is designed to withstand vibration, impact, and long-term outdoor exposure—ideal for commercial and heavy-duty vehicles.

Compact Design, Easy Concealed Installation

With a small, low-profile housing, the camera integrates seamlessly into the vehicle body without affecting appearance. The compact size allows for discreet mounting while maintaining excellent image performance.

Multiple Connector Options Available

To meet different installation needs, the camera supports:

Aviation connector
AV (RCA) connector
BMW-style connector

Compatible with most aftermarket monitors and MDVR systems.

Key Specifications

Image Sensor	PC1058
Resolution	1024 × 720P
Lens Angle	170° wide angle fisheye
Video Signal	AHD / CVBS (switchable)
Voltage	DC 12V
Waterproof Rating	IP67 / IP68
Installation Position	Front / Rear / Side
Application	Truck, Bus, Van, RV, Commercial Fleet Vehicles

Ideal Applications

Truck and bus blind-spot monitoring
Side view and rear view reversing assistance
Fleet safety upgrades
Parking assistance in low-light environments
