Professional multi-camera safety solution designed for commercial vehicles, trucks, buses, and fleet operations.

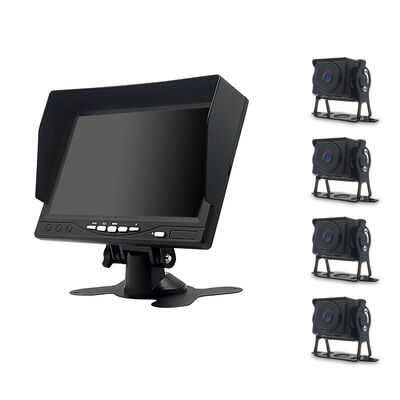

The 360° Truck Surround View DVR System provides real-time panoramic visibility without blind zones. Equipped with four AHD megapixel cameras and a 7-inch or 10-inch IPS monitor, this system ensures comprehensive coverage for commercial vehicle operations.
Intelligent voice control enables hands-free operation, allowing drivers to switch camera views while keeping full attention on the road. Advanced night vision technology ensures clear imaging in low-light and nighttime environments, while loop recording and collision lock protect important driving evidence.
The system also supports smart parking monitoring, automatically activating recording when vehicle vibration is detected. With stable performance, wide-angle coverage, and reliable video storage, this surround view DVR system significantly enhances driving safety, parking efficiency, and fleet management control.
Widely used in Europe, the Middle East, South America, and Southeast Asia for commercial vehicle safety upgrades. Ideal for logistics fleets, transport companies, and OEM vehicle integration.
| Item | Specification |
|---|---|
| System Type | 360° Surround View DVR System |
| Camera Quantity | 4 Cameras (Front / Rear / Left / Right) |
| Camera Resolution | AHD 720P / 1080P |
| Viewing Angle | 170° Wide Angle |
| Display Size | 7" or 10" IPS Screen |
| Video Channels | 4-Channel Recording |
| Night Vision | Low-Light Night Vision |
| Storage Support | Max 256GB (SD Card) |
| Recording Mode | Loop Recording |
| Parking Monitoring | Motion / Vibration Trigger |
| Collision Lock | G-Sensor Supported |
| Control Method | Voice Control + Buttons |
| Power Input | DC 12V / 24V |
| Application Vehicles | Truck, Bus, Trailer, Fleet, Agricultural Vehicles |
