Caratteristiche

Specificazioni

Prodotto: Sistema radar per punti ciechi di camion pesanti con range di rilevamento regolabile Avvertimento au

Garanzia: 1 anno

OEM, ODM: Supporto

Tecnologia di rilevamento: Radar ad ultrasuoni

Rilevamento: Distanza

Numero di sensori: 4 sonde radar (espandibili tramite configurazione)

Tipo di allarme: Cicalino + display LED della distanza

Valutazione di impermeabilità: IP67 (sensori e scatola di controllo)

Anti-interferenza: Design antirisonanza in silicone a doppio strato

Posizione dell'impianto: Punto cieco posteriore/anteriore/lato destro

Evidenziare:

truck blind spot radar system

adjustable detection range parking sensor

anti-resonance blind spot sensors

Informazioni di base

Luogo di origine: Guangdong, Cina

Marca: KING CROWN

Certificazione: RoHs

Termini di pagamento e spedizione

Imballaggi particolari: Scatola di cartone

Tempi di consegna: 45 giorni

Termini di pagamento: T/T, L/C

Capacità di alimentazione: 1000 set al mese

Galleria

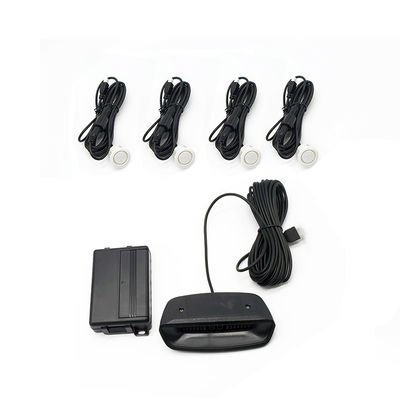

Heavy Duty Truck Blind Spot Radar System with Adjustable Detection Range Audio-Visual Warning & Anti-Resonance Sensors

Descrizione di prodotto

Heavy Duty Truck Blind Spot Radar System with Adjustable Detection Range Audio-Visual Warning & Anti-Resonance Sensors

This heavy-duty truck radar assistance system is engineered to improve driving safety and blind-spot awareness for commercial vehicles operating in complex environments.

Key Features

Designed for Heavy-Duty Trucks & Commercial Vehicles - Optimized radar sensing solution for trucks, trailers, tankers, buses, and special vehicles
Adjustable Detection Distance up to 5 Meters - Flexible sensing range adapts to different vehicle lengths and installation positions

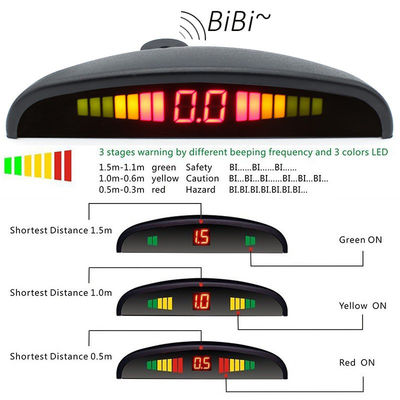

Audio & LED Visual Warning System - Real-time buzzer and LED display clearly indicate obstacle distance to the driver
Anti-Resonance Radar Probes with Double Silicone Pads - Effectively reduces false alarms caused by vibration on heavy vehicles
IP67 Waterproof Radar Sensors & Control Box - Stable performance in rain, dust, mud, and harsh road environments
Modular Installation for Front, Rear or Blind Spot Coverage - Supports right-side blind spot, rear reversing, or front-rear combined layouts

Product Overview

By using high-sensitivity radar probes with adjustable detection distance up to 5 meters, the system accurately detects pedestrians, vehicles, and obstacles during reversing or low-speed maneuvers. Equipped with an audio-visual alarm module, drivers receive instant sound alerts and LED distance feedback, allowing faster reaction and safer operation. The double-layer silicone anti-resonance design minimizes vibration-induced false alarms, a common challenge for trucks and trailers.

This truck radar blind spot warning system is widely used in Europe, the Middle East, South America, and Southeast Asia for logistics fleets and heavy-duty vehicles. Designed for harsh road and climate conditions, it provides reliable reversing assistance and blind-spot protection for trucks, trailers, and buses.

Technical Specifications

Item	Specification
Product Type	Truck Radar Blind Spot / Reversing Assistance System
Detection Technology	Ultrasonic Radar
Detection Distance	Adjustable, up to 5 meters
Number of Sensors	4 Radar Probes (Expandable by configuration)

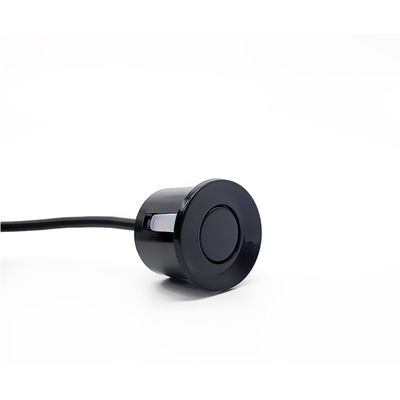

Sensor Diameter	Ø27 mm
Alarm Type	Buzzer + LED Distance Display
Operating Voltage	DC 12V / 24V
Waterproof Rating	IP67 (Sensors & Control Box)
Anti-Interference	Double-layer silicone anti-resonance design
Installation Position	Rear / Front / Right-side Blind Spot
Operating Temperature	-20°C to +70°C

Frequently Asked Questions

Q1: Can this system work on both 12V and 24V trucks?

A: Yes, it supports both 12V and 24V commercial vehicle electrical systems.

Q2: Can I install the radar only on the right-side blind spot?

A: Yes, the system supports modular installation for right-side, rear, or combined coverage.

Q3: Will vibration cause false alarms on heavy trucks?

A: No. The double-layer silicone anti-resonance design significantly reduces false alerts.

Q4: Is the system suitable for outdoor and rainy conditions?

A: Yes, all sensors and the control unit are IP67 waterproof.

VisionCarCamera Brand Advantages

OEM & ODM Manufacturing Support for radar systems and vehicle safety solutions
ISO9001, CE, RoHS Certified Production ensuring global compliance
20+ Years Experience in Automotive Electronics Export
Stable Supply for Fleet, Distributor & Project Orders
Professional Technical Support, Installation Guidance & After-Sales Service
